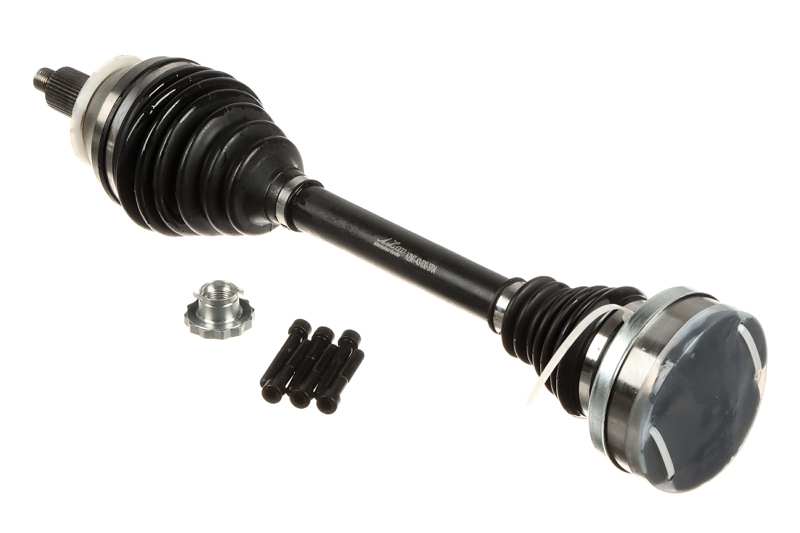

Drive shaft

• Product number:
  AZMT-43-030-3202
• ABS Ring O [mm]:
  81
• Number of Teeth, ABS ring:
  44
• Wheel-side joint diameter [mm]:
  82.0
• Transmission-side joint diameter [mm]:
  86.0
• Length [mm]:
  589
• External Teeth, diff.side [pcs]:
  35
• External Teeth, wheel side [pcs]:
  27
• Thread Size [mm]:
  M22X.15
• Total length [mm]:
  589
• Seal Diameter [mm]:
  57
• Less details

• Product number:
  AZMT-43-030-3216
• ABS Ring O [mm]:
  87
• Number of Teeth, ABS ring:
  44
• Wheel-side joint diameter [mm]:
  90.0
• Transmission-side joint diameter [mm]:
  82.0
• Length [mm]:
  420
• External Teeth, diff.side [pcs]:
  39
• External Teeth, wheel side [pcs]:
  27
• Thread Size [mm]:
  M22x1.5
• Total length [mm]:
  977
• Seal Diameter [mm]:
  44
• Less details

• Product number:
  AZMT-43-030-4209
• Wheel-side joint diameter [mm]:
  85.0
• Transmission-side joint diameter [mm]:
  102.5
• Bore diameter [mm]:
  8.0
• Number of bores:
  6
• Length [mm]:
  530
• External Teeth, wheel side [pcs]:
  30
• Pitch Circle Ř [mm]:
  86.0
• Thread Size [mm]:
  M24x1.5
• Seal Diameter [mm]:
  65
• Less details

• Product number:
  AZMT-43-030-4210
• Int.teeth, diff.side, conn.to conn.shaft [pcs]:
  26
• Wheel-side joint diameter [mm]:
  102.7
• Transmission-side joint diameter [mm]:
  93.0
• Length [mm]:
  615
• External Teeth, wheel side [pcs]:
  38
• Thread Size [mm]:
  M20x1.5
• Seal Diameter [mm]:
  63
• Less details

• Product number:
  AZMT-43-030-4190
• Wheel-side joint diameter [mm]:
  86.0
• Transmission-side joint diameter [mm]:
  82.0
• Length [mm]:
  550
• External Teeth, diff.side [pcs]:
  27
• External Teeth, wheel side [pcs]:
  31
• Thread Size [mm]:
  M16x1.5x72
• Less details

• Product number:
  AZMT-43-030-4191
• Wheel-side joint diameter [mm]:
  86.0
• Transmission-side joint diameter [mm]:
  82.0
• Length [mm]:
  841
• External Teeth, diff.side [pcs]:
  27
• External Teeth, wheel side [pcs]:
  31
• Thread Size [mm]:
  M16x1.5x72
• Less details

• Product number:
  AZMT-43-030-4077
• Wheel-side joint diameter [mm]:
  98.0
• Transmission-side joint diameter [mm]:
  108.0
• Bore diameter [mm]:
  10.0
• Number of bores:
  6
• Length [mm]:
  655
• External Teeth, wheel side [pcs]:
  30
• Pitch Circle Ř [mm]:
  94.0
• Thread Size [mm]:
  M27x1.5
• Seal Diameter [mm]:
  66
• Less details

• Product number:
  AZMT-43-030-4095
• Wheel-side joint diameter [mm]:
  88.0
• Transmission-side joint diameter [mm]:
  84.0
• Length [mm]:
  585
• External Teeth, diff.side [pcs]:
  25
• External Teeth, wheel side [pcs]:
  25
• Thread Size [mm]:
  24x1.5
• Seal Diameter [mm]:
  50
• Less details

• Product number:
  AZMT-43-030-4174
• Wheel-side joint diameter [mm]:
  79.2
• Transmission-side joint diameter [mm]:
  72.4
• Length [mm]:
  929
• External Teeth, diff.side [pcs]:
  22
• External Teeth, wheel side [pcs]:
  25
• Thread Size [mm]:
  M24x1.5
• Seal Diameter [mm]:
  51
• Less details

• Product number:
  AZMT-43-030-4162
• Wheel-side joint diameter [mm]:
  87.8
• Transmission-side joint diameter [mm]:
  87.8
• Length [mm]:
  830
• External Teeth, diff.side [pcs]:
  27
• External Teeth, wheel side [pcs]:
  30
• Thread Size [mm]:
  M27x1.5
• Seal Diameter [mm]:
  65
• Less details

• Product number:
  AZMT-43-030-4155
• Wheel-side joint diameter [mm]:
  82.0
• Transmission-side joint diameter [mm]:
  91.6
• Length [mm]:
  616
• External Teeth, diff.side [pcs]:
  22
• External Teeth, wheel side [pcs]:
  33
• Thread Size [mm]:
  M24x1.5
• Seal Diameter [mm]:
  53
• Less details
